Cummins 4BT 4BTA Complete Engine Overhaul Kit
- Product Name: Cummins 4BT Overhaul Kit
- Engine Model: Cummins 4BT3.9 / 4B3.9 / 4BTA3.9
- Displacement: 3.9 Liter 4 Cylinder Diesel
- Compression Ratio: 17.3:1 (Standard Single-Piece Piston)
- Applicable CPL Numbers: 591,681,721,843,895,981,1259,1932,690,727,857,1201,1659,2340
- OEM Reference Gasket PN: 3802240 (Upper Gasket Set), 3802361 (Lower Gasket Set), 3804896 (Head Gasket)
- Gross Weight: 21kg / 46.36lbs
- Package: Standard Export Carton
- MOQ: 1 Set
- Warranty: 12 Months
- Supply Type: Aftermarket Premium Replacement Kit
Premium full overhaul rebuild kit designed for Cummins 4BT / 4B / 4BTA 3.9L 4-cylinder turbo diesel engines. This is a complete one-stop engine repair solution covering all core wearable parts, perfectly replacing original components for heavy-duty machinery, commercial trucks, generator sets and industrial power equipment. Strictly manufactured per OEM standards, it solves engine oil leakage, power drop, smoking, high fuel consumption and aging failures thoroughly.
Core Basic Specifications
- Compatible Engine Model: Cummins 4BT3.9, 4B3.9, 4BTA3.9
- Displacement: 3.9L
- Applicable CPL Numbers: 591, 681, 721, 843, 895, 981, 1259, 1932, 690, 727, 857, 1201, 1659, 2340
- Key OEM Reference PN: 3802240 (Upper Gasket Set), 3802361 (Lower Gasket Set), 3804896 (Head Gasket)
- Available Size: Standard STD / 0.25mm / 0.5mm oversize (for boring overhaul)
- Quality Grade: Premium Aftermarket (OEM Dimension & Tolerance)
- Warranty: 12 months factory warranty
- MOQ: 1 set (small trial order acceptable)
- Supply Capacity: Stable bulk stock, fast global delivery

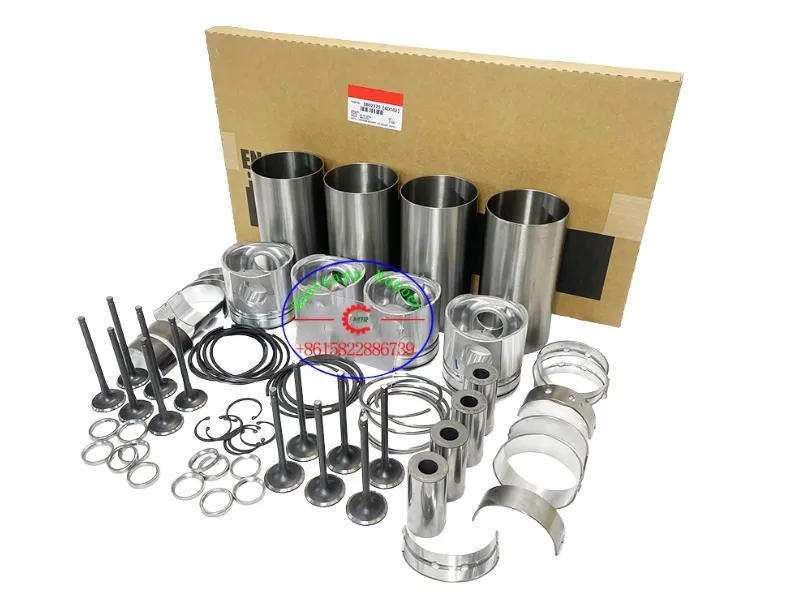

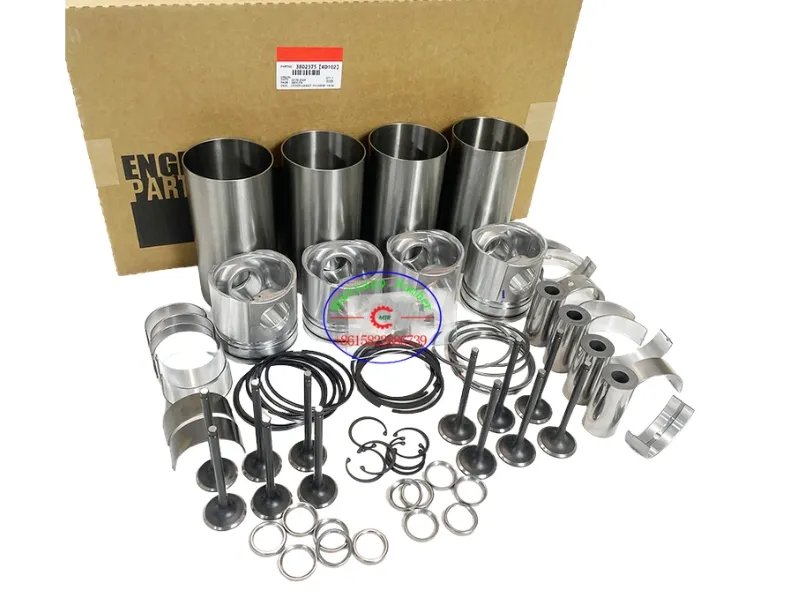

Full Kit Components List (No Missing Parts)
- 4PCS Pistons + Piston Pins + Retainer Circlips
- Full set piston rings (top ring, second ring, oil control ring)
- Crankshaft main bearings + thrust bearings
- Connecting rod bearings
- Complete upper gasket set & lower gasket set
- Front & rear crankshaft oil seals, valve seals, all O-rings & copper washers
| OVERHAUL PARA MOTOR CUMMINS 3.9 | ||
| PISTON | 3926631 | 4 |
| Clips | 3901706 | 8 |
| PISTON PIN | 3934047 | 4 |
| Cylinder linder | 3904166 | 4 |
| piston ring | 3802421 | 4 |
| con rod bearing | 3901170 | 1 |
| main bearing | 3802010 | 1 |
| upper gasket kit | 3804896 | 1 |
| lower gasket kit | 3802375 | 1 |
